The 4th Generation Glock: New Standards for Perfection

The 4th Generation Glock: New Standards for Perfection

The Generation 3 Glock 17 would bring the Glock pistol into the accessories market for lasers and tactical lights by moulding a rail into the bottom of the front of the frame. Additionally, finger grooves were added to the front strap of the pistol as well as thumb swells to the sides of the frame. Also, this model brought Glock to use but one frame for the 9mm, .40 and .357 pistols rather than have a separate 9mm family of frames. The locking block pin to all frames. Additional strengthening of the frame made it suitable for the powerful .357 SIG cartridge as well.

Generation 3
The third generation pistols brought the Glock into the accessories era in the late 1990s time frame.  First is the addition of a rail on the front of the pistol for adding tactical lights as well as laser sights.  In 2003, Glock introduced with this pistol a trio of light options.  First a tactical light only, then a tactical light/laser sight combo and then a tactical light/visible laser/IR laser combo.  Added to the front of the frame are 3 finger grooves and thumb swells on both sides of the receivers.  Some pistols were also sold with the Glock extended slide release.  The color of the finish would change as well to a more glossy black finish. The long awaited addition of a loaded chamber indicator was introduced as well.  This enabled the shooter to run his finger over the extractor.  If it was felt it was most probably loaded, if not it was unloaded.  Through the beginning of this generation of pistols Glock still used separate frames for 9×19 pistols, later in the Generation 3 all would be switched to the same frame with the extra pin for the locking block.  Additionally the frames themselves were strengthened.  This came around the development of the .357 cartridge.  This caliber required a stronger frame than the Generation 2 so this was built into the Generation 3.  If you had a .40 caliber pistol with a Generation 3 frame you could swap out the barrel for a .357 and fire it safely.  It was not in the case of the older G22 frame.  This Generation would see the introduction of the G35, and G36 as well as in 2002 Glock introduced their internal gun lock requiring a Glock key to engage and disengage.

This author has found no official number but the best information available is that between 60 and 75% of law enforcement officers in the United States carry the Glock pistol in one of its many variations.

In 2004, the .45 G.A.P. round came into play in model G37 and in 2005 in the G38 and G39.  This is the first cartridge introduced by Glock. Clearly over the past several years, law enforcement trends show a shift back to the .45 Auto calibre cartridge.  With this switch, many smaller statured officers have had great difficulty using full sized .45 Auto caliber pistols.  Glock engineers took a long look at the 100 year old cartridge and found that there are several changes that could be made to make the cartridge that much more efficient.  First the cartridge case was longer than needed with modern propellants.  There is a significant amount of wasted space in the powder cup. So the cartridge case was shortened taking advantage of modern propellant. It was found that when firing the same weight bullet the .45 G.A.P. or .45 Glock Automatic Pistol would fire at slightly higher velocities than the legacy .45 Auto.  The profile of the bullet was changed decreasing the length of the projectile.  Now Glock had a .45 Auto-type bullet in a much shorter package that now could be placed in a 9×19/.40 caliber frame.  Officers with smaller hand would have little difficulty with the .45 caliber handgun when using the 45 GAP cartridge.

In 2007, Glock introduce its first SF (Short Frame) pistol the G21 SF.  This is a full size Glock 21 .45 Auto caliber pistol with 2 distinct changes. The pistol has a new, sleeker lower receiver with an ambidextrous magazine release button.  This required a new magazine.  The change was the engagement surface of the magazine catch is on the front of the pistol grip so it had to be on the front of the magazine.  Standard G21 magazines will not work.  However the G21 SF magazine will work in all other Glock 21 and 30 pistols.

In 2009, Glock introduced their new RTF2 (Rough Textured Frame) pistol.  The grip has been the most evolving change throughout the evolution of the Glock pistol.  The new RTF2 consists of hundreds of miniature “polymids” on the front, rear and sides including the thumb rest resulting in increased traction.

The newest pistol, the Glock 17 Generation 4 makes even more changes and improvements. Most importantly, the new double recoil spring system was added that decreases felt recoil and extends the life of the frame. This proven technology started in the sub-compact G26, G27, G29, G30 pistols and later to other subcompact models. The next major change was Glock’s introduction of adjustable frames to accommodate user hand size.

The Generation 4 Glock
Mr. Glock has as his corporate motto “Glock Perfection,” and there is no question he means it.  He understood that to maintain that perfection he would have to always improve his weapon.  Though mechanically this is a sound weapon, probably the most durable handgun in history, the evolution would have to continue in order to stay as the number one handgun in the world.  The changes that would need to be made were more cosmetic and having the pistol adapt to different shooters hands as well as styles.  Glock’s Generation 4 pistols were introduced in 2010.

Shooter’s hands as we all know come in all sizes and it is difficult to make one firearm that will suit all.  This is the particular case in a Law Enforcement and a military pistol.  You will have the smallest hands of a female officer to the Sasquatch size hands of this author.  Trends within the industry were to have removable backstraps that would adjust the grip size for the individual shooter.  In true Glock fashion, they responded to the customer and offered the Generation 4 pistol with two backstraps.  The frame with nothing is for the smallest hands, there are a medium and a large backstrap.  Also in true Glock fashion it is simple to install.  The pistol is supplied with a simple punch which pushes out the trigger housing pin, the backstrap snaps in place and the trigger housing pin is replaced.  Additionally, the texture of the grip sides and the finger grooves were changed to a better and more grippable square pattern.

The operation of Glock’s sequential “Safe Action” mechanism. Three positive safeties that engage one after the other and when the trigger is released all three engage. This mechanism is far superior to the double action revolvers carried by law enforcement since the revolver was invented. (Courtesy of Glock, Inc.)

A major change was the magazine release of the pistol: it is reversible and the button is significantly larger.  In order to make the magazine catch reversible, the magazine was modified so that the engagement notch for the magazine catch is on both sides.  It means if you want to move the mag catch to the right side you have to have a new production Gen 4 magazine.  If you leave it on the left side you may use any generation magazine.

The mechanical improvement came in the form of a new spring guide assembly.  Although the Glock pistol is very light compared to most of its kind, the recoil is very manageable and mild.  Glock pistols have always used the strongest and longest lasting flat recoil springs.  With the introduction of the mini Glock pistol (G26, G27, G28, G29, G30 and G33) in 1996, a new recoil spring was devised.  Dual springs were used softening the recoil and the impact on the frame making the pistols extremely mild in the area of recoil.  Glock applied that technology to the larger frame pistols introducing it in the Generation 4 G17 and G22.  This required modifications to the slide to accept the larger end of the recoil spring.  When comparing a generation 3 and 4 on the range it is clearly evident which is which.  The push and flip of the generation 4 is noticeably less assisting in even quicker follow-up shots.

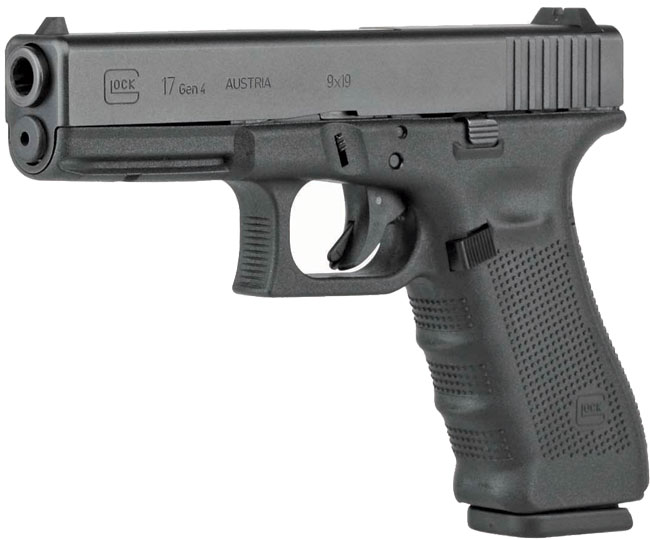

The Glock model 17 Generation 4 pistol.

The Generation 4 pistol was released at the 2010 SHOT Show and was accepted with open arms.  Soon to follow were the compact and mini pistols.  The ones still not converted over are the larger frame G20, G21, G29 and G30 pistols which the G21 GEN 4 is anxiously anticipated by this author.  Glock Austria showed prototypes of the G21 Gen 4 at the IWA show in Nuremburg, Germany in February of 2011. This author looks forward to the G21 Gen 4 in 2012.
