Chinese Security Forces’ Weapon of Choice

by N.R. Jenzen-Jones
13 October, 2023
in Editorials, Search By Issue, V12N4, Volume 12
0 0
0
0
SHARES
146
VIEWS
Share on FacebookShare on Twitter

CS/LS06 “Chang Feng” Submachine Gun

By N.R. Jenzen-Jones

The Chang Feng submachine gun (SMG)—known in its latest iteration as the “CS/LS06”—is in service with Chinese law enforcement and paramilitary personnel, as well as specialised units from other nations. The design is notable for its 50-round helical magazine and is often issued with a suppressor. Development of the Chang Feng SMG began in the mid-1990s by the Chongqing Changfeng Machine Company Ltd., based in the southwestern Chinese city of Chongqing.

The weapon was conceived by veteran designer Qing Shangsheng, under the auspices of the Changfeng Military Products Research Institute. In addition to leading the design team for the QSZ-92 pistol, Mr. Qing had previously worked on a number of other small arms projects, including the Type 64 7.62×17mm pistol, Type 67 7.62×17mm suppressed pistol, Type 80 7.62×25mm submachine gun, Type 56-2 self-loading rifle, both 7.62 and 5.45 light machine guns (“squad automatic weapons”), and a variety of sporting pistols, a signal pistol and even a derringer. Prior to working on the CF05, he had already secured a patent for a high-capacity quad-stack, double-feed magazine for the Type 56-2.

Prototypes

According to a 2006 interview with the designer, he initially developed the concept in secrecy between 1993 and 1994 and did not share it with the factory manager until 1996. Four main series of prototypes were then developed. The first prototype used the weapon’s helical magazine to form part of the buttstock, fitted with a removable rubber butt pad. Versions of Prototype I were developed with different burst functions: Prototype I-1 had a two-round burst mechanism, and Prototype I-2 had a three-round burst mechanism. The second prototype’s magazine moved so that it sat above the barrel and introduced the closed-bolt, blow-back operation.

Prototype II was fitted with a telescoping stock. Both Prototypes I and II were chambered for 5.8×21mm.

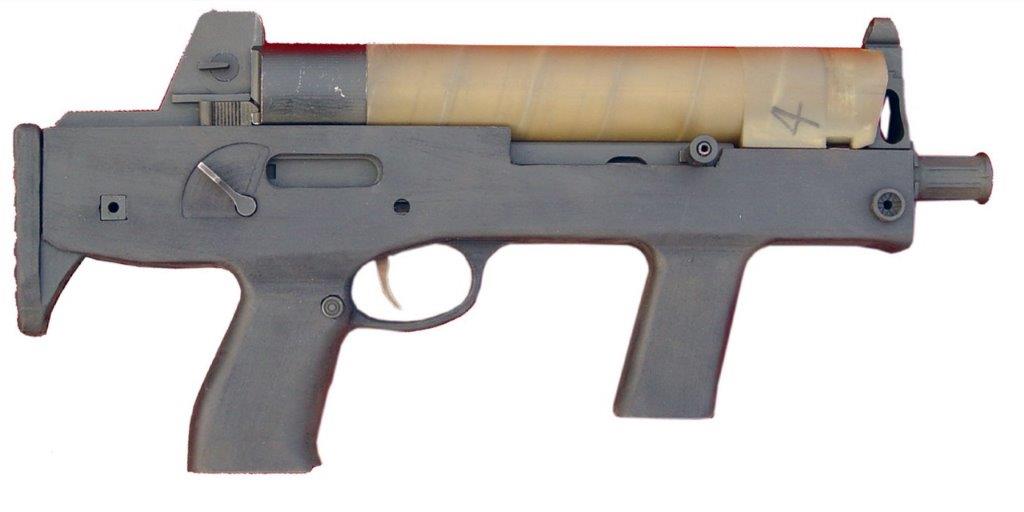

Chang Feng submachine gun Prototype I, chambered for 5.8×21mm

It was determined that export sales were to be a priority for this weapon, and the weapons were updated to chamber the internationally popular 9×19mm cartridge. At this point, the program adopted the designation “QC-9” for the guns. As well as the new chambering, Prototype III saw experimentation with under-folding buttstock designs. Prototypes III-1 and III-2 have slightly different folding stock configurations. Prototype III-2 also introduced an optics mounting capability.

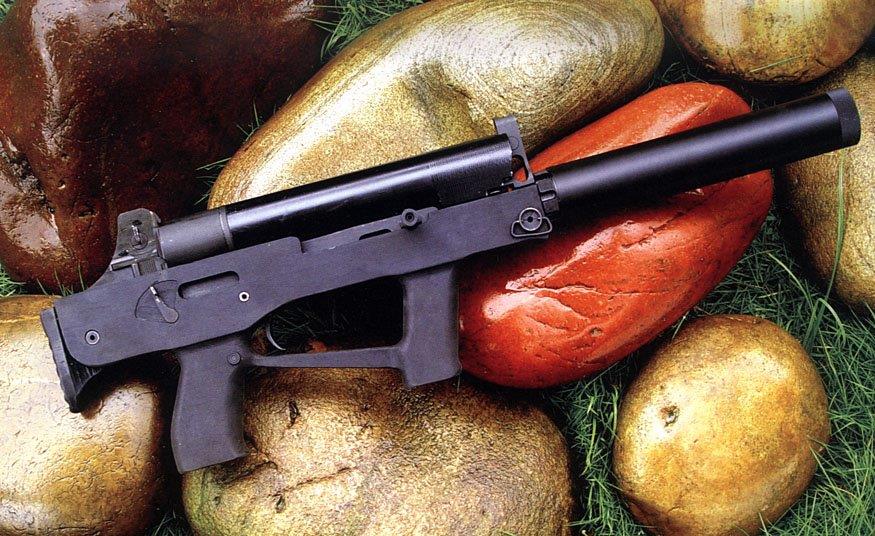

Chang Feng submachine gun Prototype II, chambered for 5.8×21mm

Prototypes I, II and III were all able to feed from a secondary feed device—a detachable box magazine housed in the pistol grip of the gun. These were QSZ-92 pistol magazines, which are produced in both 5.8×21mm and 9×19mm versions. A separate magazine release, located on the pistol grip, is visible in the first three prototype series. In the first prototype, it was possible to inadvertently introduce a feeding issue with both magazines fully seated. In Prototypes II and III, the box magazine could not be fully seated until all rounds were fired from the helical magazine, tripping a switch.

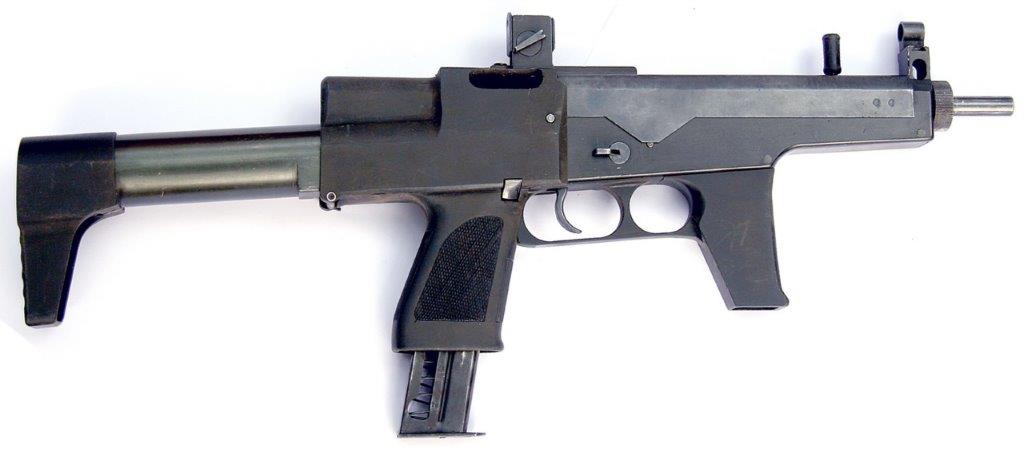

Chang Feng submachine gun (QC-9) Prototype III-1, chambered for 9×19mm

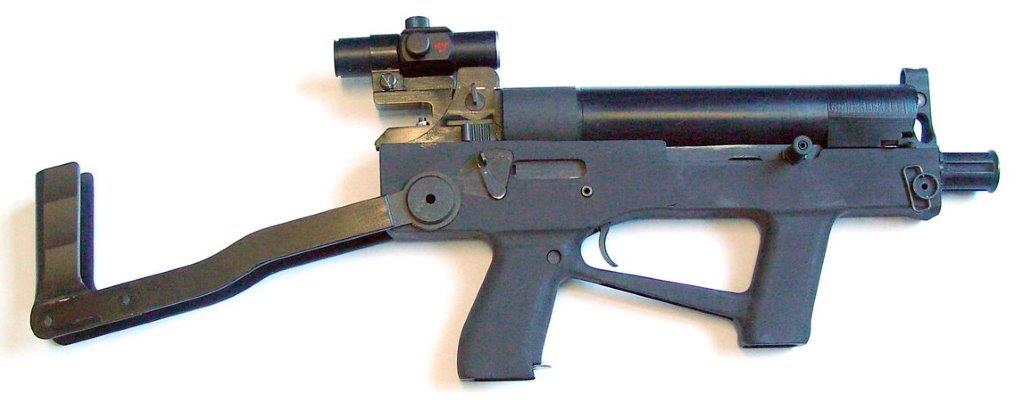

Chang Feng submachine gun (QC-9) Prototype III-2, chambered for 9×19mm

By Prototype IV, the design had returned to using a telescoping buttstock, and the alternate box magazine feed system was removed. A magazine release button is still seen on the pistol grip of all prototype weapons. In Prototypes II and III, the forward and rear pistol grips are connected via a bridging structure. Prototype IV-1 also has this “bridged” configuration; however, by Prototype IV-2, the furniture design is essentially finalised and is close to the production gun. The prototypes had a cleaning kit stored in the front pistol grip, which was also dropped from production guns. By the last prototypes, the translucent brown helical magazines appear to have been introduced, and translucent white magazines followed in early production guns.

Chang Feng submachine gun (QC-9) final Prototype IV-2, chambered for 9×19mm

A number of further changes were made as the QC-9 progressed through development. The weapon underwent trials in 2004, and issues with extractor strength, feeding issues, trigger issues, and the fire selector were resolved. The weapon was finally approved for serial production in May 2005. The production version of the weapon, now designated the CF05, was publicly showcased at the first annual China International Exhibition on Police Equipment and Anti-Terrorism Technology and Equipment (CIPATE) on May 10, 2005.

Export Variant

In 2006, the export variant of the weapon was approved, and the designation CS/LS06 was applied. Export versions of the weapon have occasionally been marketed as the Type 06, but CS/LS06 remains the most common name. “CS” likely stands for “China South,” as in “China South Industries Group,” which included Changfeng amongst its subsidiaries. This designation is seen on the title page of an English-language SMG manual from the mid-2000s (China South Industries Corporation’s “Operation & Maintenance Manual of 9mm Light Submachine Gun Type CS/LS06,” state-owned document #236), which was intended for the export version of the gun. It has been suggested by several observers that “CS06” is the designation for the firearm, whilst “LS06” is the designation for the suppressor. Not only is there no evidence to support this claim, “CS/LS” designations are applied to other export submachine guns without suppressors. The Changfeng Machine Company merged with Jian She several years ago, and so the “CF05” designation is unlikely to be used again.

The Chang Feng design is a hammer-fired, blow-back operated submachine gun chambered for 9×19mm, firing from a closed bolt and feeding from a 50-round helical magazine. The design uses a telescoped bolt which wraps around the barrel when in battery. At the end of its rearward travel, the bolt is stopped against the rear of the barrel assembly, rather than the receiver. The polymer receiver features a collapsible stock, and the barrel is threaded to accept a suppressor, which is typically supplied with the gun.

CS/LS06 Features

The CS/LS06 features a combined fire selector/safety, which allows for safe (B), semiautomatic (D) and automatic (L) modes to be selected. The selector can be removed like a “key” to the gun, locking it in the safe position. A three-position aperture sight is marked for 50m (“5”), 100m (“10”) and 150m (“15”) engagement ranges. The stock is extended from the collapsed position simply by pulling it rearward. It is collapsed by pressing in the buttstock latch on the left-hand side of the weapon. Detailed disassembly is quite complex, but a basic field strip can be conducted relatively quickly without tools.

Left-hand side profile of the Chinese CS/LS06 submachine gun (source: China Southern Industries Corporation).

The most notable feature of this weapon is its 50-round helical magazine. Helical magazines, often confused with drum magazines, use a staggered-helix design, which allows for a substantial increase in carrying capacity in a relatively compact form-factor. This results in a cylindrical magazine, which is often (as in this case) mounted above the weapon’s receiver, rather than below it.

Whilst helical magazines have been repeatedly tested in western countries (one early example of an internal helical magazine can be seen in the Evans Repeating Rifle, patented in the late 1860s, for example), they have typically found more favour in China, Russia and their client states. Perhaps the magazines of this type, with which most western readers will be familiar, are those used with the American Calico series of firearms. In fact, Qing expressly stated that the CF05 helical magazine design was influenced by a research trip a colleague took to the United States, where this person observed the Calico designs. Nonetheless, the construction of the magazine is closer to the Russian PP-19 Bizon submachine gun type.

Their inherently complex design makes helical magazines more prone to failure. The Chang Feng SMG manual gives a “failure rate” for the weapon of “equal to or less than 3 ‰,”  or three failures in every 1,000 rounds fired (1 in 334, or thereabouts). This failure rate would be considered unacceptably high by modern western standards, even under the assumption that this probably refers to all stoppages rather than just parts “failures.”

Reloading the magazine is a much more complex operation than that for conventional detachable box magazines. According to the gun manual:

5.2 Cartridge loading: Load required cartridge from loading port of cylinder (as shown in fig. 26, never miss loading), then apply spring force clockwise (as shown in fig. 27). Each turn of cylinder could contain 8 rounds and 50 rounds at maximum. Turns of spring force required is decided according to loading rounds. Turns of applying spring force equals to (X+1;n—rounds of loading cartridge [sic] …

That wording will likely be opaque to most readers, but thankfully the manual also includes a table which makes the process comparatively straightforward. Paraphrased, it indicates:

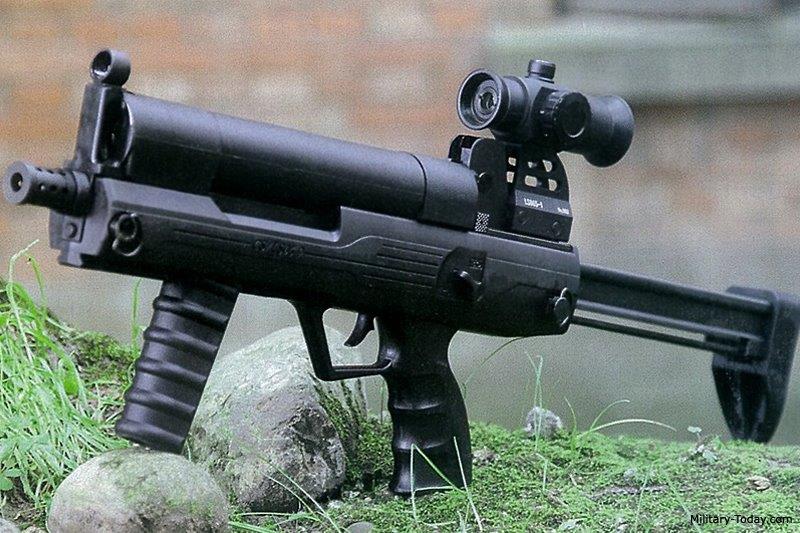

New variant of the CS/LS06 submachine gun. Note the forward-canted pistol grip, pictographic safety/selector markings, new furniture textures, redesigned trigger guard, new stock design and faintly-visible model marking (source: Chinese social media via ARES CONMAT Database).

Table 1

Number of cartridges 1–8 9–16 17–25 26–34 35–43 44–50
Rotations of loading lever 2 3 4 5 6 7

Whilst the export weapons have almost exclusively been seen with opaque black polymer magazines, the manual notes “This gun is equipped with black opaque cylinder; if cartridge indication is required, brown semi-transparent cylinder could be equipped.” The weapon is typically offered for export with Chinese-made accessories, including a laser/light module (LLM; the most common appears to be the LLR-2), optical day sight, grenade launcher and suppressor.

The latest model of the gun features HK-style red and white pictographic safety/selector markings, new furniture textures, a forward-canted front pistol grip and trigger guard, a modified stock design and the model name moulded into the plastic on the left-hand side of the weapon.

The suppressor attaches via a left-hand metric thread on the barrel, located behind the muzzle device. A retaining/indexing pin is located below the muzzle. The SMG manual recommends disassembly and servicing of the suppressor after 150 rounds have been fired. Some limited suppressor testing was undertaken by Dr. Philip H. Dater and Dan Shea, the results of which were published in the Small Arms Defense Journal, “Chinese CS06 LSMG and LS06 Suppressor,” Vol. 3, No. 4.

In Service

The Chang Feng submachine gun has been documented in service with Chinese police and paramilitary forces. It is used by the elite No. 1 Detachment of the Beijing Special Weapons and Tactics Unit, known as the Blue Sword Commando Unit. Other police units around the country have also used the weapon, and it has been documented in a number of high-profile police actions, including protection of the Beijing Olympics and a hostage rescue action in Changchun, the capital of China’s northeast Jilin Province.

The weapon is also issued to components of the People’s Armed Police, including 3rd Group, 13th Detachment of the Beijing General Corps, known as the Snow Leopard Commando Unit. Snow Leopard personnel were observed carrying the weapon during training prior to the Beijing Olympics and in the Sino-Russian “Peace-Mission 2007” joint military exercise. In recent years, Chinese security forces are believed to be moving away from the Chang Feng design and toward new designs which are supposedly capable of firing a broad range of 9×19mm ammunition, from less-lethal to +P+ loads. Nonetheless, those that remain in arsenals are likely to continue to be seen.

A number of export sales have also taken place, with confirmed transfers to Myanmar (Burma), Venezuela and Uganda. In Venezuela, the weapon is used in a close personal protection role by the 509 Special Forces Battalion of the Army, Presidential Honor Guard personnel and members of the Special Unit for Security and Protection of State Personalities (UESPPE).

TECHNICAL SPECIFICATIONS

Calibre: 9×19mm

Overall Length (buttstock collapsed): 412mm (w/out suppressor); 631mm (w/suppressor)

Overall Length (buttstock extended): 595mm (w/out suppressor); 814mm (w/suppressor)

Barrel Length: 232mm

Weight: 2.2kg (empty w/magazine); 2.9kg (loaded with 50-round magazine)

Sight Radius: 285mm

Rate of Fire: 800 rds/min

Feed Device: 50-round detachable helical magazine

V0: 360 m/s

Chang Feng submachine gun (QC-9) Prototype IV-1, chambered for 9×19mm

SOURCES

 ARES CONMAT Database.

China South Industries Corporation, “Operation & Maintenance Manual of 9mm Light Submachine Gun Type CS/LS06,” State-owned document #236. [No date.]

FirearmsWorld. “CS/LS06” 2012. firearmsworld.net/china/smg/cf05/lwsmg.htm.

NORINCO, Small Arms. Sales catalogue. 2012.

Pérez, Pedro, “Chinese ‘Chang Feng’ Submachine Gun in Venezuela.” The Hoplite Magazine. August 19, 2019. armamentresearch.com/chinese-chang-feng-submachine-gun-in-venezuela.

Special thanks to Ellie Chang, Pedro Pérez, Maxim Popenker and Timothy G. Yan.

This article is reproduced courtesy of Armament Research Services (ARES). See www.armamentresearch.com for further original content.

Author

  • N.R. Jenzen-Jones
    N.R. Jenzen-Jones

    View all posts
Tags: 2020ARESARMAMENT RESEARCH SERVICESChang FengCS/LS06N.R. Jenzen-JonesQC-9SMGSpecial Unit for Security and Protection of State PersonalitiesSubmachine GunUESPPEV12N4Volume 12

Related Posts

Author Name

Saab to Supply Carl-Gustaf 84mm Recoilless Rifle System to the U.S. Army

by Major Walter Christian Håland (RET.)
11 August, 2023
Features

No Rivals to Excellence: PK Series

by SADJ Staff
26 October, 2023
Features

Spuhr Collapsible Stock Assembly

by SADJ Staff
24 February, 2023
Author Name

Colt Automatic Gun Model 1895/1914

by Robert G. Segel
15 August, 2023
Columns

Industry News: V7N6

by SADJ Staff
15 August, 2023

RECENT POSTS

Daniel Defense PCC SBR- The Pistol Caliber Carbine Taken to a Higher Level

27 June, 2024

True Velocity, FN America Announce Global Manufacturing Partnership on Lightweight Medium Machine Gun

18 June, 2024

CZ’s New Modular, Multi-Caliber CZ BREN 3 Rifle

17 June, 2024

Reaching 2 Miles and Beyond: A Review of Barrett’s New MRADELR Rifle

11 June, 2024

FN Updates EVOLYS Ergonomics

6 June, 2024
Small Arms Defense Journal

Welcome to Small Arms Defense Journal‘s digital presence! The contributors to this site come from many walks of life, but we all have common ground; the study of small arms technology and history.

POPULAR CATEGORIES

  • Ammunition
  • Doctrine
  • Foreign Military
  • Grenades & Rockets
  • Machine Gun Memorabilia
  • Suppressors

SITE LINKS

  • About us
  • Editorials
  • Reviews

CONTACT DETAILS

  • Phone :+1(702)565-0746
  • Email : office@sadefensejournal.com
  • Web : www.chipotlepublishing.com
  • Chipotle Publishing, LLC 631 N. Stephanie St., No. 282, Henderson, NV 89014
  • Advertise
  • Privacy Policy
  • Disclaimer

© 2024 Chipotle Publishing | All Rights Reserved

Welcome Back!

Login to your account below

Forgotten Password?

Retrieve your password

Please enter your username or email address to reset your password.

Log In

Add New Playlist

- Select Visibility -

    No Result
    View All Result
    • About Small Arms Review
    • About us
    • Advertise
    • Brief
    • Home
    • Observe
    • Show Schedule
    • test
    • Trade Show Information
      • Africa
        • Africa Aerospace & Defence – Centurion, South Africa
      • Asia
        • Asia China Police Expo – Beijing, China
        • BRIDEX – Jerudong, Brunei Darussalam
        • Defense & Security – Bangkok, Thailand
        • Defense Services Asia – Kuala Lumpur, Malaysia
        • IDEAS – Karachi, Pakistan
        • INDO DEFENCE – Jakarta, Indonesia
        • TADTE – Taipei, Taiwan
      • Australia
      • Europe
        • Arms & Security – Kyiv, Ukraine
        • ASDA – Split, Croatia
        • B&T Police Equipment Show – Thun, Switzerland
        • BSDA – Bucharest, Romania
        • DSEI – London, United Kingdom
        • Eurosatory – Paris, France
        • Expomil – Bucharest, Romania
        • Future Forces – Prague, Czech Republic
        • IDEB – Bratislava, Slovak Republic
        • IDEF – Istanbul, Turkey
        • IWA OutdoorClassics – Nuremberg, Germany
        • Milipol – Paris, France
        • MSPO – Kielce, Poland
        • MSPO 2021: Defence industry giants – solid as a rock
        • MSPO 2022 — South Korea Holds the MSPO’s Lead Nation Exhibition for the Second Time
        • MSPO 2022: SHOW REPORT
        • Partner – Belgrade, Serbia
        • Symposia at Shrivenham – Shrivenham, UK
      • Middle East
        • IDEX – Abu Dhabi, UAE
        • ISDEF – Tel Aviv, Israel
        • SOFEX – Amman, Jordan
      • North America
        • Modern Day Marine – Quantico, VA
        • SHOT Show – Las Vegas, NV
      • Show Calendar
      • South America
        • FIDAE – Santiago, Chile
        • LAAD – Rio de Janeiro, Brazil
        • SITDEF – Lima, Peru
    • V12N3

    © 2024 Chipotle Publishing | All Rights Reserved
